Series SS2 Smart Positioner

Home Products Valve Monitors – Limit SwitchSeries SS2 Smart Positioner

Series SS2 – Smart Positioner

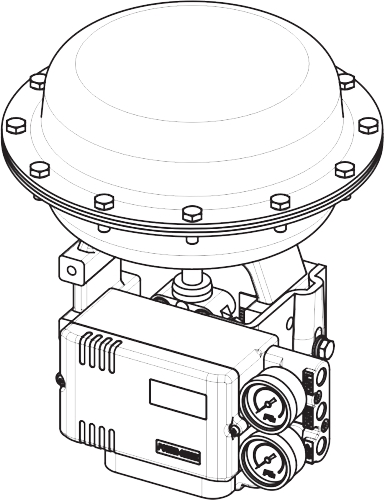

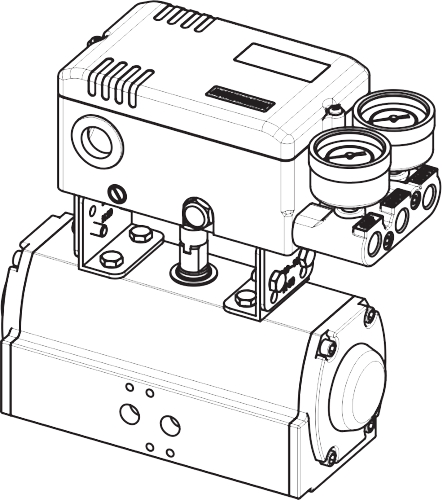

SS2R-WN2NOH4R

SS2 – Smart Positioner

General Purpose
Intrinsically Safe

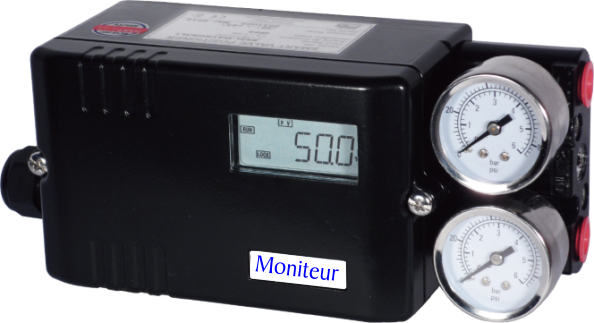

Moniteur’s SS2 Smart Positioner has been designed to excel in the harsh working conditions found in the toughest environments. Compared with other smart positioners, the SS2 is easier to calibrate and program, is more resistant to dirty air and has the lowest cost of ownership.

The SS2 has a wide range of communication options including HART, Profibus and Foundation Fieldbus. It also carries ATEX and IECEx certification for Intrinsically Safe. For severly corrosive environments a stainless steel enclosure is available. Check out the long list of features:

Downloads
Download Catalog Sheet

Certificates
ATEX Certification
IECEx Certification

Links
Bracket Kits and Mtg Hardware
Common Spare Parts
Visual Indicateurs
Moniteur’s VPT Selection Guide

ex-logo-58x50ce-logo-70x50

Approvals
Intrinsically Safe Type (IECEx / ATEX / KC Ex ia IIC T5)

  • Features
  • Part Numbers
  • Options
  • Specifications

Features & Benefits of SS2 Smart Positioner

• Easy and quick auto-calibration
• Detecting RA(reverse acting) or DA(direct acting) automatically
• Available for single or double acting actuators without any special adjustments
• Compact design allowing it to be installed on small actuators
• Providing error messages against performance failures
• Possible to test the actuator with any fixed signal under a test mode
• Programmable characteristic curve with 17 points
• Wide operating termperature range -30°C ~ +80°C
• Improved control of high-friction globe and ball valves by eliminating overshoot and hunting
• Low air consumption
• Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
• Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves

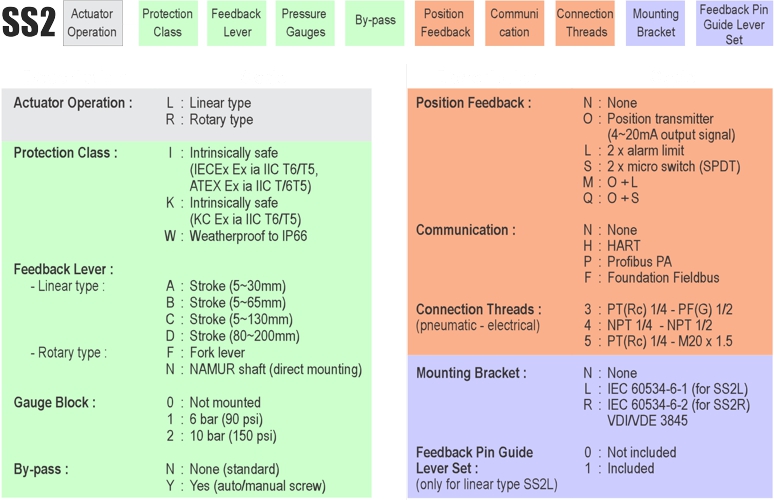

Intelligent Part Number System – Specify Your SS2 Smart Positioner

Options – SS2 Smart Positioner

Feedback
• Output position transmitter (4-20mA)
• 2 x alarm limit or micro switch (SPDT)

Approvals
• Explosion proof type (IECEx / ATEX / KC Ex ia IIC T5)

Communications
• HART Communication
• Profibus communication
• Fieldbus Foundation communication

Specifications – SS2 Smart Positioner

ItemSpecifications
Input Signal4-20mA @ 24VDC
Min. / Max. Current3.6mA / 50mA
Voltage Drop (Resistance)Without Hart : 8.7 VDC (435ohm @ 20mA)
With Hart : 9.4 VDC (470ohm @ 20mA)
Stroke / AngleRotary type: 25 - 120
Linear type: 5 - 130mm*
Air Supply Pressure1.4 - 7.0 bar (20 - 100 psi), filtered, compressed dry and non-oiled to meet Class 3 of ISO 8573-1
Output Pressure Range0 -100% of supply air pressure
Air Capacity80 l/min = 4.8 Nm2/h = 2.8 scfm (Sup = 1.4 bar)
233 l/min = 14 Nm2/h = 8.2 scfm (Sup = 6 bar)
Air Consumption2 l/min = 0.12 Nm2/h =0.07 scfm (Sup = 1.4 - 6 bar)
CharacteristicsLinearity < +/-0.3% F.S Sensitivity < 0.2% F.S
Hysteresis <0.2% F.S Repeatability < 0.2% F.S
Performance CharacteristicLinear, EQ %, Quick open, User set (17 points)
LCD Indication4-digit LCD indicator
Adjustable Speed1 - 1000 (lowest 1, highest 1000)
Scan Time2ms
Shut-off ValueRange 0 - 10% of position signal
Valve Actiondirect action (DA) / reverse action (RA)
Operating Temperature-30 to 80 C (-22 to 176 F)**
Pneumatic ConnectionsNPT 1/4 or PT(Rc)
Electrical Connections1/2 NPTF or 2 x PF(G) 1/2
Protection ClassIP66, intrinsically safe (IECEx / ATEX / KC Ex ia IIC T5)
Body MaterialAluminum die-cast / powder-painted
Weight1.6 kg

+ Features

Features & Benefits of SS2 Smart Positioner

• Easy and quick auto-calibration
• Detecting RA(reverse acting) or DA(direct acting) automatically
• Available for single or double acting actuators without any special adjustments
• Compact design allowing it to be installed on small actuators
• Providing error messages against performance failures
• Possible to test the actuator with any fixed signal under a test mode
• Programmable characteristic curve with 17 points
• Wide operating termperature range -30°C ~ +80°C
• Improved control of high-friction globe and ball valves by eliminating overshoot and hunting
• Low air consumption
• Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
• Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves

+ Part Numbers

Intelligent Part Number System – Specify Your SS2 Smart Positioner

+ Options

Options – SS2 Smart Positioner

Feedback
• Output position transmitter (4-20mA)
• 2 x alarm limit or micro switch (SPDT)

Approvals
• Explosion proof type (IECEx / ATEX / KC Ex ia IIC T5)

Communications
• HART Communication
• Profibus communication
• Fieldbus Foundation communication

+ Specifications

Specifications – SS2 Smart Positioner

ItemSpecifications
Input Signal4-20mA @ 24VDC
Min. / Max. Current3.6mA / 50mA
Voltage Drop (Resistance)Without Hart : 8.7 VDC (435ohm @ 20mA)
With Hart : 9.4 VDC (470ohm @ 20mA)
Stroke / AngleRotary type: 25 - 120
Linear type: 5 - 130mm*
Air Supply Pressure1.4 - 7.0 bar (20 - 100 psi), filtered, compressed dry and non-oiled to meet Class 3 of ISO 8573-1
Output Pressure Range0 -100% of supply air pressure
Air Capacity80 l/min = 4.8 Nm2/h = 2.8 scfm (Sup = 1.4 bar)
233 l/min = 14 Nm2/h = 8.2 scfm (Sup = 6 bar)
Air Consumption2 l/min = 0.12 Nm2/h =0.07 scfm (Sup = 1.4 - 6 bar)
CharacteristicsLinearity < +/-0.3% F.S Sensitivity < 0.2% F.S
Hysteresis <0.2% F.S Repeatability < 0.2% F.S
Performance CharacteristicLinear, EQ %, Quick open, User set (17 points)
LCD Indication4-digit LCD indicator
Adjustable Speed1 - 1000 (lowest 1, highest 1000)
Scan Time2ms
Shut-off ValueRange 0 - 10% of position signal
Valve Actiondirect action (DA) / reverse action (RA)
Operating Temperature-30 to 80 C (-22 to 176 F)**
Pneumatic ConnectionsNPT 1/4 or PT(Rc)
Electrical Connections1/2 NPTF or 2 x PF(G) 1/2
Protection ClassIP66, intrinsically safe (IECEx / ATEX / KC Ex ia IIC T5)
Body MaterialAluminum die-cast / powder-painted
Weight1.6 kg
