KFNN-0226
Guardian Linear VPT for Hazardous Areas
Guardian Linear VPT
Explosion-Proof
Nema 4, 4X, 7 & 9

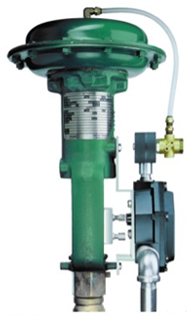

The GUARDIAN is a versatile valve position transmitter designed for a wide variety of applications. Linear Control Valves – The picture to the left shows the GUARDIAN mounted to a linear control valve.
Knife-Gate Valves – The Guardian is adaptable to knife-gate valves, and can be used together with a Companion VPT to form an integrated package. The Guardian would provide the junction box and one limit switch, and the Companion would provide the second limit switch.
Rotary Valves – The Guardian can be used on an actuated rotary valve for a NEMA 6P (periodic submersion) applications.
Junction Box Applications – With 3 conduit entries and a maximum of 26 terminal points, the Guardian is a cost-effective alternative to standard junction boxes.
The Guardian is available with Moniteur’s advanced line of TTL Non-Contact Switches or Inductive Sensors, providing the ability to interface with any plant control system.
Approvals
UL / CSA Approved for
– Class I, Division 2 Groups A, B, C, D
– Class I, Division 1 Groups C, D
– Class II, Division 1 Groups E, F, G with TTL SPDT Non-Contact Switches.
Materials
Enclosure
• Die Cast Aluminum
Bearing
• Bronze
• 303 Stainless Steel
Shaft
• 303 Stainless Steel
• 316 Stainless Steel
Fasteners
• 316 and 18-8 Stainless Steel
Shaft Loc-Ring
• Stainless Steel
O-Rings
• Buna-N
• Viton
Indicator Cover
• Ektar Copolyester
Cams and Splines
• Acetal
Options
Conduit Entries
• 2x 13/4″ NPT and 1x 1/2″ NPT
Shaft Types
• Standard NAMUR
• Low Profile NAMUR
• Standard Shaft 0.25″ Flats
Mechanical Switches
• Mechanical SPDT
Lead Legnth
• 36″ standard
• Longer legnths availiable
Analog Output
• 4-20mA Transmitter
• 1k ohm High Linearity Potentiometer
• 10k ohm High Linearity Potentiometer
Proximity Switches
• Tungsten TTL Hermetically Sealled Proximity Switches
• Rhodium TTL Hermetically Sealed Proximity Switches
DPDT Switches
• DPDT Mechanical Switches
Inductive Sensors
• NAMUR Intrinsically Safe Sensors (NEMA 4 only)
Visual Indicators
• Black/Yellow
• Flat Cover- No visual
• Red Blue or Green/White
• Others Available
• ‘O’,’T’,’F’,’S’ Flow Path
• 0-100% Digital
Misc
Weight
• 2 kg/each
Warranty
• 12 Months
Intelligent Part Number System – Specify Your Guardian Linear VPT
| K | F | N | N | - | 0 | 2 | 2 | 6 |
| 1 | 2 | 3 | 4 | - | 5 | 6 | 7 | 8 |
| 1 - Series | 6 - Switch Type | ||
| Guardian | K | Non-Contact (Proximity) | |
| 2 - Cover | Tungsten TTL SPDT - 3A | 2 | |
| Flat Cover | F | Rhodium TTL SPDT- 1A | T |
| 3 - Moniteur | |||
| no Indicator | N | Inductive Sensors | |
| 4 - Bearing / Inserts | P&F (NAMUR) | 8 | |
| no bearing | N | 7 - Switch Quantity | |
| 5 - Shaft | 1-2 | 1-2 | |
| no shaft | 0 | 8 - Conduit | |
| (2) F 3/4" + (1) F 1/2" NPT | 6 |
Common Gaurdian VPT Items
KFNN-0216
KFNN-0226
KFNN-0T16
KFNN-0T26
These items are typically available for quick delivery.
Contact us for spec sheets covering configurations not shown here – we’ll gladly make them for you.
- Specifications
Materials
Enclosure• Die Cast Aluminum
Bearing• Bronze
• 303 Stainless SteelShaft• 303 Stainless Steel
• 316 Stainless SteelFasteners• 316 and 18-8 Stainless Steel
Shaft Loc-Ring• Stainless Steel
O-Rings• Buna-N
• VitonIndicator Cover• Ektar Copolyester
Cams and Splines• Acetal
Options
Conduit Entries• 2x 13/4″ NPT and 1x 1/2″ NPT
Shaft Types• Standard NAMUR
• Low Profile NAMUR
• Standard Shaft 0.25″ FlatsMechanical Switches• Mechanical SPDT
Lead Legnth• 36″ standard
• Longer legnths availiableAnalog Output• 4-20mA Transmitter
• 1k ohm High Linearity Potentiometer
• 10k ohm High Linearity PotentiometerProximity Switches• Tungsten TTL Hermetically Sealled Proximity Switches
• Rhodium TTL Hermetically Sealed Proximity SwitchesDPDT Switches• DPDT Mechanical Switches
Inductive Sensors• NAMUR Intrinsically Safe Sensors (NEMA 4 only)
Visual Indicators
• Black/Yellow
• Flat Cover- No visual• Red Blue or Green/White
• Others Available• ‘O’,’T’,’F’,’S’ Flow Path
• 0-100% Digital
Misc
Weight• 2 kg/each
Warranty• 12 Months
- Part Numbers
Intelligent Part Number System – Specify Your Guardian Linear VPT
K F N N - 0 2 2 6 1 2 3 4 - 5 6 7 8 1 - Series 6 - Switch Type Guardian K Non-Contact (Proximity) 2 - Cover Tungsten TTL SPDT - 3A 2 Flat Cover F Rhodium TTL SPDT- 1A T 3 - Moniteur no Indicator N Inductive Sensors 4 - Bearing / Inserts P&F (NAMUR) 8 no bearing N 7 - Switch Quantity 5 - Shaft 1-2 1-2 no shaft 0 8 - Conduit (2) F 3/4" + (1) F 1/2" NPT 6 Common Gaurdian VPT Items
KFNN-0216
KFNN-0226
KFNN-0T16
KFNN-0T26These items are typically available for quick delivery.Contact us for spec sheets covering configurations not shown here – we’ll gladly make them for you.- Switches/Sensors
- Visual Indicator
- Features
- Documents
Guardian VPT Switch and Sensor Selection Guide
Non-Contact TTL SPDT (proximity-type) Switches
These hermetically sealed switches set the standard for reliability. Tungsten TTL switches are used for high current AC and DC applications with a rating of 3A at 120 VAC and 2A at 24 VDC. Choose Rhodium TTL for low voltage / low current DC and Intrinsically Safe applications. Optional LEDs are also available on the Krystal TTL with Rhodium contacts. NOTE: Switches with Tungsten contacts are not recommended for DC signals lower than 50 mA. Specifications
NAMUR, PNP or NPN Inductive Sensors
A wide variety of industry standard sensors is available to interface with control systems found in today’s modern process plants. Specifications
Features & Benefits
Available with Moniteur’s reliable line of TTL Non-Contact Switches or Inductive Sensors to inferface with any plant control system Internal Switches and terminal block are labeled for easier installation.
PDF Spec Sheets for Common Guardian VPT Items
KFNN-0216 | KFNN-0226 | KFNN-0T16 |
| KFNN-0T26 |
These items are typically available for quick delivery.
Contact us for spec sheets covering configurations not shown here – we’ll gladly make them for you.
Intelligent Part Number System – Specify Your Guardian VPT
1 – Series | 6 – Switch Type | ||
Guardian | K | Non-Contact (Proximity) | |
2 – Cover | Tungsten TTL SPDT – 3A | 2 | |
Flat Cover | F | Rhodium TTL SPDT- 1A | T |
3 – Moniteur | |||
no Indicator | N | Inductive Sensors | |
4 – Bearing / Inserts | P&F (NAMUR) | 8 | |
no bearing | N | 7 – Switch Quantity | |
5 – Shaft | 1-2 | 1-2 | |
no shaft | 0 | 8 – Conduit | |
(2) F 3/4″ + (1) F 1/2″ NPT | 6 |
Guardian VPT Switch and Sensor Selection Guide
Non-Contact TTL SPDT (proximity-type) Switches
These hermetically sealed switches set the standard for reliability. Tungsten TTL switches are used for high current AC and DC applications with a rating of 3A at 120 VAC and 2A at 24 VDC. Choose Rhodium TTL for low voltage / low current DC and Intrinsically Safe applications. Optional LEDs are also available on the Krystal TTL with Rhodium contacts. NOTE: Switches with Tungsten contacts are not recommended for DC signals lower than 50 mA. Specifications
NAMUR, PNP or NPN Inductive Sensors
A wide variety of industry standard sensors is available to interface with control systems found in today’s modern process plants. Specifications
Features & Benefits
Available with Moniteur’s reliable line of TTL Non-Contact Switches or Inductive Sensors to inferface with any plant control system Internal Switches and terminal block are labeled for easier installation.
