PMYB-5120
Survivor VPT Corrosion – Resistant NEMA 4, IP 65
Survivor VPT
Corrosion – Resistant
NEMA 4, 4X IP 65
The SURVIVOR has been designed to provide the most visible and reliable valve position indication for corrosive environments. Molded from DuPont’s SuperTough Zytel Nylon, the SURVIVOR will stand up to harsh washdowns and corrosives with ease. Moniteur’s Engineered Loc-Ring Cam and Shaft retention system and a bronze or stainless steel bearing allow a multi-million cycle life, even in harsh environments.
Materials
Enclosure
• Zytel Nylon
Bearing
• Bronze / Nickel Plated Brass
Shaft
• 303 Stainless Steel
• 316 Stainless Steel
Fasteners
• 316 and 18-8 Stainless Steel
Shaft Loc-Ring
• Stainless Steel
O-Rings
• Buna-N
• Viton
Indicator Cover
• Ektar Copolyester
Cams and Splines
• Acetal
Options
Conduit Entries
• 2x 1/2″ NPT
• 3x 1/2″ NPT
• 1x 1/2″ NPT and 1x 1/2″ NPT Male Hub
Shaft Types
• Standard NAMUR
• Low Profile NAMUR
• Standard Shaft 0.25″ Flats
Mechanical Switches
• Mechanical SPDT
Lead Legnth
• 36″ standard
• Longer legnths availiable
Analog Output
• 4-20mA Transmitter
• 1k ohm High Linearity Potentiometer
• 10k ohm High Linearity Potentiometer
Proximity Switches
• Tungsten TTL Hermetically Sealled Proximity Switches
• Rhodium TTL Hermetically Sealed Proximity Switches
DPDT Switches
• DPDT Mechanical Switches
Inductive Sensors
• Inductive Proximity
• NAMUR Intrinsically Safe Sensors
Visual Indicators
• Black/Yellow
• Flat Cover- No visual
• Red Blue or Green/White
• Others Available
• ‘O’,’T’,’F’,’S’ Flow Path
• 0-100% Digital
Misc
Weight
• 1.0 kg/each
Warranty
• 12 Months
Intelligent Part Number System – Specify Your Survivor
| P | M | Y | B | - | 5 | 1 | 2 | 0 |
| 1 | 2 | 3 | 4 | - | 5 | 6 | 7 | 8 |
| 1 - Series | 6 - Switch Type | ||
| Survivor | P | Mechanical | |
| 2 - Cover | Cherry SPDT - 15A | 1 | |
| With Moniteur | M | Prism Gold SPDT - 1A | 3 |
| Flat Cover | F | ITW DPDT - 10A | 4 |
| 3 - Moniteur | Non-Contact (Proximity) | ||
| No Indicator | N | Tungsten TTL SPDT- 3A | 2 |
| Black / Yellow | Y | Rhodium TTL SPDT - 1A | T |
| 3-way path O | O | ||
| 3-way path T | T | Inductive Sensors | |
| 3-way path F | F | P&F NJ2 -V3 (NAMUR) | 8 |
| 4-way path S | S | P&F NBB3-V3-Z4 | K |
| 180 degree T | 1 | P&F NBB2-V3-US | KA |
| Green / White | G | 7 - Switch Quantity | |
| Red / White | R | 42373 | 42373 |
| Blue / White | B | 8 - Conduit | |
| Green / Red | A | (2) F 1/2" NPT | 0 |
| Red / Green | C | (2) 1/2" + (1) F 1/2" NPT | 6 |
| 4 - Bearing & Inserts | (1) F 1/2" + (1) M 1/2" NPT | 8 | |
| Bronze & Nickel Plated Brass | B | Options - Add Suffix | |
| 303 Stainless | S | Output | |
| 5 - Shaft | Current 4-20 mA | 420 | |
| Standard 303 SS | 1 | Resistive 0-1000 ohm | 1K |
| Standard 316 SS | 3 | ||
| NAMUR 303 SS | 5 | ||
| NAMUR 316 SS | 7 | ||
| LONG NAMUR 303 SS | E |
Features & Benefits of Moniteur’s Watchman VPT
Mechanical SPDT and DPDT Switches
The most popular switch for general purpose applications is rated 15A at 120 VAC and 2.5V at 24 VDC. Our standard mechanical switches are specified with higher operating forces and offer better resistance to freeze up. Gold Plated SPDT switches rated at 1A at 24 VDC are a low-cost alternative for intrinsically safe applications. DPDT Mechanical Switches rated at 10A / 125 VAC and 7A / 24VDC are also available. Specifications
NAMUR, PNP or NPN Inductive Sensors
A wide variety of industry standard sensors is available to interface with control systems found in today’s modern process plants. Specifications
Non-Contact TTL SPDT (proximity-type) Switches
These hermetically sealed switches set the standard for reliability. Tungsten TTL switches are used for high current AC and DC applications with a rating of 3A at 120 VAC and 2A at 24 VDC (100 Watts Max). Choose Rhodium TTL for low voltage / low current DC and Intrinsically Safe applications. Optional LEDs are also available on the Krystal TTL with Rhodium contacts. NOTE: Switches with Tungsten contacts are not recommended for DC signals lower than 50mA. Specifications
Optional 4-20ma Transmitters and 0-1K ohm Potentiometers
Current or Resistive Output are available for 0-100% / 4-20mA feedback. Our electronics have been designed for severe applications and have been proven to outperform our competition in the toughest of environments. Specifications

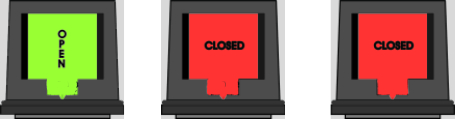

Moniteur’s Visual Indicator Options
Black / Yellow “Y”
Full Green / Full Red “A”
Full Red / Full Green “C”
0-100% Green/Red “P”
Blue / White “B”
Green / White “G”
Red / White “R”
0-100% Red/Green “Q”
3 Way Path “O”
3 Way Path “T”
3 Way Path “F”
180 Deg T-Port “1”
120 Deg PIG “3”
4 Way Path “S”
135 Deg Diverter “4”
180 Deg L-Port OCOC “5”
180 Deg L-Port OOCC “6”
Features & Benefits of Moniteur’s Watchman VPT
Clear Ektar cover
offers excellent chemical resistance and strength
Indicator shaft is secured to the housing with
Moniteur’s engineered Loc-Ring Cam and Shaft Retention System, ensuring sensing accuracy and a multi-million cycle life.
“Flat cover” version available
without indicator is a cost effective option where visual indication is not required.
Super-Tough Zytel Housing with inserts cast in during the molding process
resist pull-out during assembly or maintenance
Environmentally sealed indicator
on the top of the unit prevents fogging or entry of contaminants. The indicator has a rated minimum life of 1,000,000 cycles.
Moniteur has indicators still in service with over 9 million cycles behind them!
Internal Switches and terminal block are labeled for easier installation.
Optional thermoplastic quick-mount bracket
for NAMUR actuators stands up to corrosive environments.
Indicator is 100% adjustable
to any valve or actuator.
The industry’s only “true” visual valve position indicator

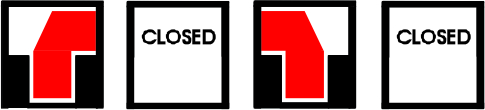

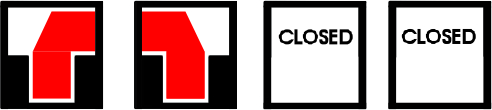

available for multi-port valves, adjustable to match the physical flow pattern of the valve. See the configurations below.
Available with Moniteur’s wide variety of switches and sensors
for today’s advanced control systems.
Our switch selection guide is listed here.
PDF Spec Sheets for Common Survivor VPT Items
These items are typically available for quick delivery.
Contact us for spec sheets covering configurations not shown here – we’ll gladly make them for you.
- Specifications
Materials
Enclosure• Zytel Nylon
Bearing• Bronze / Nickel Plated Brass
Shaft• 303 Stainless Steel
• 316 Stainless SteelFasteners• 316 and 18-8 Stainless Steel
Shaft Loc-Ring• Stainless Steel
O-Rings• Buna-N
• VitonIndicator Cover• Ektar Copolyester
Cams and Splines• Acetal
Options
Conduit Entries• 2x 1/2″ NPT
• 3x 1/2″ NPT
• 1x 1/2″ NPT and 1x 1/2″ NPT Male HubShaft Types• Standard NAMUR
• Low Profile NAMUR
• Standard Shaft 0.25″ FlatsMechanical Switches• Mechanical SPDT
Lead Legnth• 36″ standard
• Longer legnths availiableAnalog Output• 4-20mA Transmitter
• 1k ohm High Linearity Potentiometer
• 10k ohm High Linearity PotentiometerProximity Switches• Tungsten TTL Hermetically Sealled Proximity Switches
• Rhodium TTL Hermetically Sealed Proximity SwitchesDPDT Switches• DPDT Mechanical Switches
Inductive Sensors• Inductive Proximity
• NAMUR Intrinsically Safe SensorsVisual Indicators
• Black/Yellow
• Flat Cover- No visual• Red Blue or Green/White
• Others Available• ‘O’,’T’,’F’,’S’ Flow Path
• 0-100% Digital
Misc
Weight• 1.0 kg/each
Warranty• 12 Months
- Part Numbers
Intelligent Part Number System – Specify Your Survivor
P M Y B - 5 1 2 0 1 2 3 4 - 5 6 7 8 1 - Series 6 - Switch Type Survivor P Mechanical 2 - Cover Cherry SPDT - 15A 1 With Moniteur M Prism Gold SPDT - 1A 3 Flat Cover F ITW DPDT - 10A 4 3 - Moniteur Non-Contact (Proximity) No Indicator N Tungsten TTL SPDT- 3A 2 Black / Yellow Y Rhodium TTL SPDT - 1A T 3-way path O O 3-way path T T Inductive Sensors 3-way path F F P&F NJ2 -V3 (NAMUR) 8 4-way path S S P&F NBB3-V3-Z4 K 180 degree T 1 P&F NBB2-V3-US KA Green / White G 7 - Switch Quantity Red / White R 42373 42373 Blue / White B 8 - Conduit Green / Red A (2) F 1/2" NPT 0 Red / Green C (2) 1/2" + (1) F 1/2" NPT 6 4 - Bearing & Inserts (1) F 1/2" + (1) M 1/2" NPT 8 Bronze & Nickel Plated Brass B Options - Add Suffix 303 Stainless S Output 5 - Shaft Current 4-20 mA 420 Standard 303 SS 1 Resistive 0-1000 ohm 1K Standard 316 SS 3 NAMUR 303 SS 5 NAMUR 316 SS 7 LONG NAMUR 303 SS E - Switches/Sensors
Features & Benefits of Moniteur’s Watchman VPT
Mechanical SPDT and DPDT SwitchesThe most popular switch for general purpose applications is rated 15A at 120 VAC and 2.5V at 24 VDC. Our standard mechanical switches are specified with higher operating forces and offer better resistance to freeze up. Gold Plated SPDT switches rated at 1A at 24 VDC are a low-cost alternative for intrinsically safe applications. DPDT Mechanical Switches rated at 10A / 125 VAC and 7A / 24VDC are also available. Specifications
NAMUR, PNP or NPN Inductive SensorsA wide variety of industry standard sensors is available to interface with control systems found in today’s modern process plants. Specifications
Non-Contact TTL SPDT (proximity-type) SwitchesThese hermetically sealed switches set the standard for reliability. Tungsten TTL switches are used for high current AC and DC applications with a rating of 3A at 120 VAC and 2A at 24 VDC (100 Watts Max). Choose Rhodium TTL for low voltage / low current DC and Intrinsically Safe applications. Optional LEDs are also available on the Krystal TTL with Rhodium contacts. NOTE: Switches with Tungsten contacts are not recommended for DC signals lower than 50mA. Specifications
Optional 4-20ma Transmitters and 0-1K ohm PotentiometersCurrent or Resistive Output are available for 0-100% / 4-20mA feedback. Our electronics have been designed for severe applications and have been proven to outperform our competition in the toughest of environments. Specifications
- Visual Indicator
Moniteur’s Visual Indicator Options
Black / Yellow “Y”Full Green / Full Red “A”Full Red / Full Green “C”0-100% Green/Red “P”Blue / White “B”Green / White “G”Red / White “R”0-100% Red/Green “Q”3 Way Path “O”3 Way Path “T”3 Way Path “F”180 Deg T-Port “1”120 Deg PIG “3”4 Way Path “S”135 Deg Diverter “4”180 Deg L-Port OCOC “5”180 Deg L-Port OOCC “6”- Features
Features & Benefits of Moniteur’s Watchman VPT
Clear Ektar coveroffers excellent chemical resistance and strength
Indicator shaft is secured to the housing withMoniteur’s engineered Loc-Ring Cam and Shaft Retention System, ensuring sensing accuracy and a multi-million cycle life.
“Flat cover” version availablewithout indicator is a cost effective option where visual indication is not required.
Super-Tough Zytel Housing with inserts cast in during the molding processresist pull-out during assembly or maintenance
Environmentally sealed indicatoron the top of the unit prevents fogging or entry of contaminants. The indicator has a rated minimum life of 1,000,000 cycles.
Moniteur has indicators still in service with over 9 million cycles behind them!Internal Switches and terminal block are labeled for easier installation.Optional thermoplastic quick-mount bracket
for NAMUR actuators stands up to corrosive environments.Indicator is 100% adjustableto any valve or actuator.
The industry’s only “true” visual valve position indicatoravailable for multi-port valves, adjustable to match the physical flow pattern of the valve. See the configurations below.
Available with Moniteur’s wide variety of switches and sensorsfor today’s advanced control systems.
Our switch selection guide is listed here.- Documents
PDF Spec Sheets for Common Survivor VPT Items
These items are typically available for quick delivery.Contact us for spec sheets covering configurations not shown here – we’ll gladly make them for you.
