71E-W4N
Series 71 – Smart Positioner
Series 71 – Smart Positioner
General Purpose
Intrinsically Safe
Moniteur’s Series 71 Smart Positioner has been designed to excel in the harsh working conditions found in the toughest environments. Compared with other smart positioners, the Series 71 is easier to calibrate and program, is more resistant to dirty air and has the lowest cost of ownership.
The Series 71 has a wide range of communication options including HART, Profibus and Foundation Fieldbus. For General Purpose Applications. For severely corrosive environments a stainless steel enclosure is available. Check out the long list of features:
Approvals
General Purpose Applications IP66, Type 4X
Features & Benefits of Series 71 Smart Positioner
• Easy and quick auto-calibration
• Detecting RA(reverse acting) or DA(direct acting) automatically
• Available for single or double acting actuators without any special adjustments
• Compact design allowing it to be installed on small actuators
• Providing error messages against performance failures
• Possible to test the actuator with any fixed signal under a test mode
• Programmable characteristic curve with 17 points
• Wide operating termperature range -30°C ~ +80°C
• Improved control of high-friction globe and ball valves by eliminating overshoot and hunting
• Low air consumption
• Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
• Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves
• Actuator test function

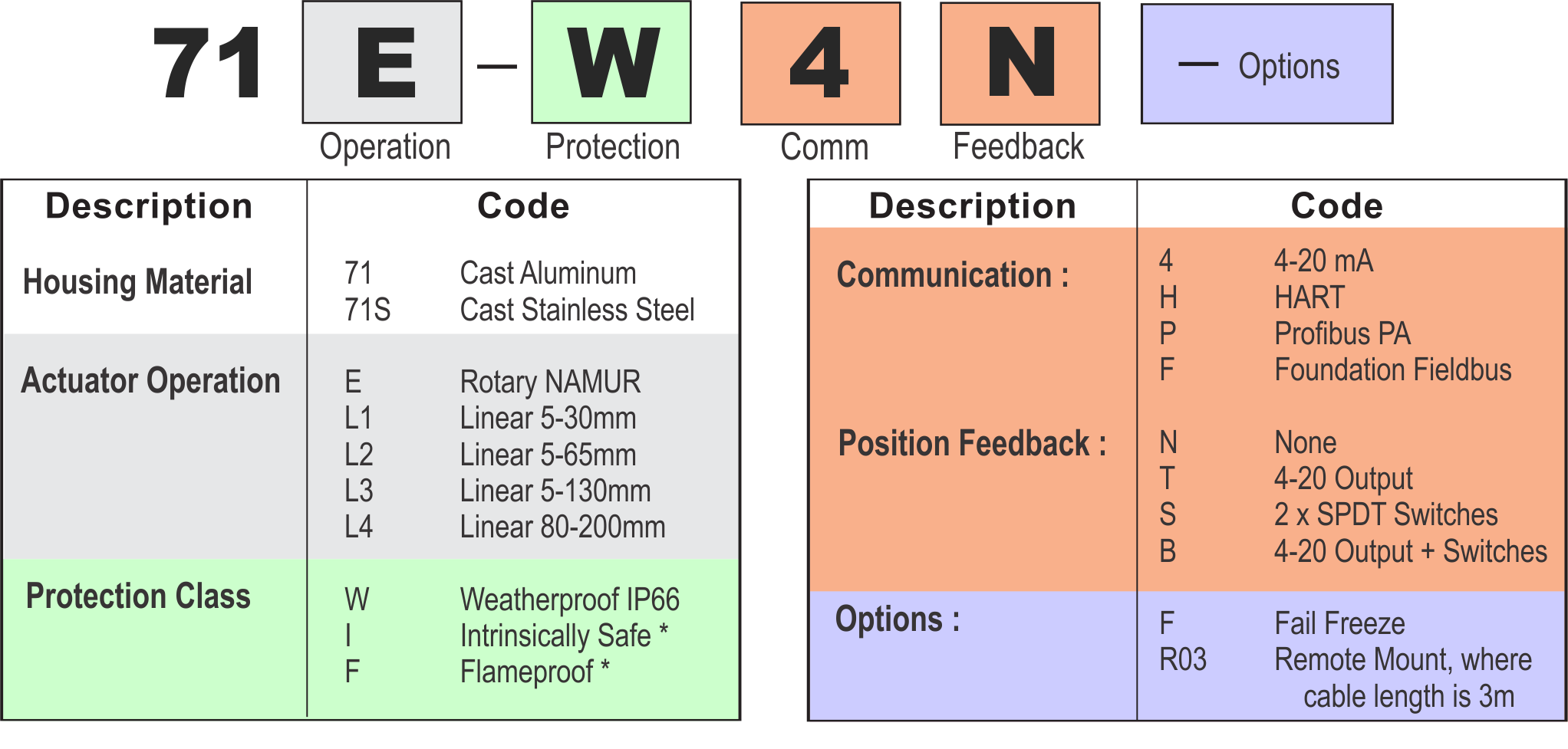

Intelligent Part Number System – Specify Your Series 71 Smart Positioner
Options – 71E Smart Positioner
Feedback
• Output position transmitter (4-20mA)
• 2 x alarm limit or micro switch (SPDT)
Approvals
• General Purpose Application IP66, Type 4X
Communications
• HART Communication
• Profibus Communication
• Foundation Fieldbus Communication
Other Options
• Cast Stainless Steel Enclosure
• ATEX / IECEx Approvals
• Remote Mount Version – Cable Length to 30m
• Fail Freeze
Specifications – Series 71 Smart Positioner
| Item | Specifications |
|---|---|
| Input Signal | 4-20mA @ 24VDC |
| Min. / Max. Current | 3.6mA / 50mA |
| Voltage Drop (Resistance) | Without Hart : 8.7 VDC (435ohm @ 20mA) With Hart : 9.4 VDC (470ohm @ 20mA) |
| Stroke / Angle | Rotary type: 25 - 120 Linear type: 5 - 130mm* |
| Air Supply Pressure | 1.4 - 7.0 bar (20 - 100 psi), filtered, compressed dry and non-oiled to meet Class 3 of ISO 8573-1 |
| Output Pressure Range | 0 -100% of supply air pressure |
| Air Capacity | 80 l/min = 4.8 Nm2/h = 2.8 scfm (Sup = 1.4 bar) 233 l/min = 14 Nm2/h = 8.2 scfm (Sup = 6 bar) |
| Air Consumption | 2 l/min = 0.12 Nm2/h =0.07 scfm (Sup = 1.4 - 6 bar) |
| Characteristics | Linearity < +/-0.3% F.S Sensitivity < 0.2% F.S Hysteresis <0.2% F.S Repeatability < 0.2% F.S |
| Performance Characteristic | Linear, EQ %, Quick open, User set (17 points) |
| LCD Indication | 4-digit LCD indicator |
| Adjustable Speed | 1 - 1000 (lowest 1, highest 1000) |
| Scan Time | 2ms |
| Shut-off Value | Range 0 - 10% of position signal |
| Valve Action | direct action (DA) / reverse action (RA) |
| Operating Temperature | -30 to 80 C (-22 to 176 F)** |
| Pneumatic Connections | NPT 1/4 or PT(Rc) |
| Electrical Connections | 1/2 NPTF or 2 x PF(G) 1/2 |
| Protection Class | IP66, intrinsically safe (IECEx / ATEX / KC Ex ia IIC T5) |
| Body Material | Aluminum die-cast / powder-painted |
| Weight | 1.6 kg |
